Newest Holographic Transparent LED Screen All in One
The overall structure is fixed without frame, and the lamp board is made of PCB board with a hollow mesh circuit on the surface. The thickness of the screen is less than 2mm, light and thin, and can be bent and cut. it is flexible and skillful to use, seamlessly integrated when mounted on transparent glass.
Send Inquiry
Product Description
LED Holographic Invisible Screen
The overall structure is fixed without frame, and the lamp board is made of PCB board with a hollow mesh circuit on the surface. The thickness of the screen is less than 2mm, light and thin, and can be bent and cut. it is flexible and skillful to use, seamlessly integrated when mounted on transparent glass. Adopting self-developed chips with strong driving performance, coupled with high-quality materials and high standard craftsmanship, the sensory permeability of the entire series of products can reach over 80%.
Product features
Product parameters

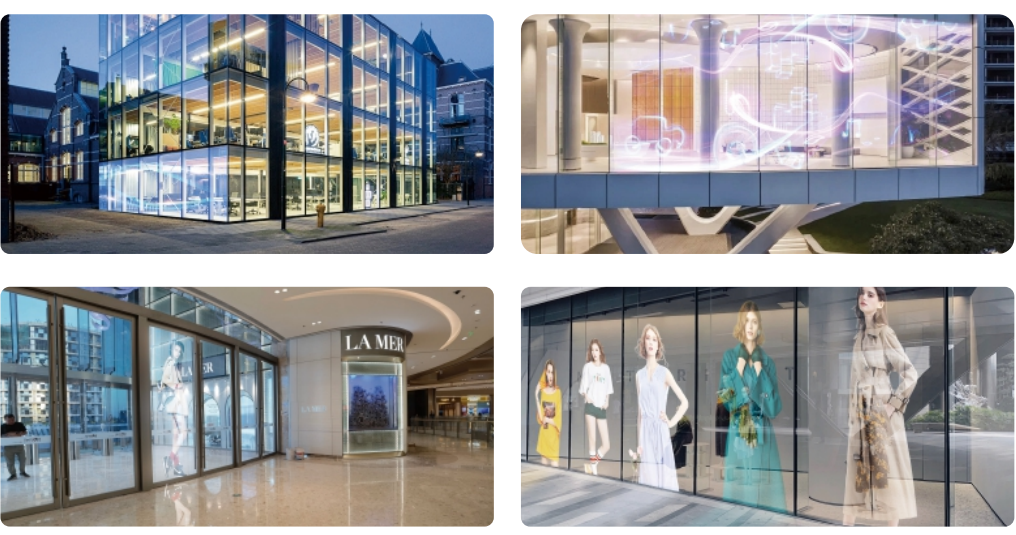

The product is widely used in commercial display windows, commercial curtain walls, exhibition halls, creative displays, entertainment and tourism automobile sales service stores, and other fields.
Product parameters
| Model | P2.5 | P3.91 | P6.25 | P10 |
| Pixel pitch(mm) | 2.5*2.5 | 3.91*3.91 | 6.25*6.25 | 10*10 |
| Pixel density(Pixels/㎡) | 160000 | 65536 | 25600 | 10000 |
| Screen visual permeablity | 70% | 80% | 90% | 93% |
| Brightness(cd/㎡) | ≥1800 | ≥3000 | ≥5000 | ≥5000 |
| Peak power (W/㎡) | 800 | 1000 | 1000 | 1000 |
| Average power(W/㎡) | 350 | 370 | 370 | 370 |
| Horizontal/Vertical view(°) | 140 | |||
| Maximum contrast | 4000:1 | |||
| Protection grade | IP20 | |||
| Frame change frequency | 60Frame /Second Suppot High Resolution3D:120Frame /Second | |||
| Refresh rate(Hz) | ≥3840 | |||
| Screen color temperature(K) | 2000-9500 | |||
| Input operating voltage | AC:110V-240V、50-60Hz | |||
| Mean trouble-free working time(H) | ≥10000 | |||
| LED Life time (H) | 100000 | |||
| Operating ambient temperature(°C) | -10~60 | |||
| Operating environment humidity(RH) | 10%~90%，No condensation | |||
Customizable brightness and size according to customer needs
Widely used in creative displays, comprehensive shopping malls, retail storefronts, exhibition displays, and other scenarios.
